CCS1 to Tesla Charging Adapter

Item Number: HAD0001
Volume Order? Request a quote

Product Overview
Specifications
Downloads

【For Tesla Owners Only】 Tesla Model 3/S/X/Y. Check and make sure your Tesla support CCS. (any Tesla built prior to Oct 2020 will require an ECU retrofit to be CCS enabled. Check the vehicle settings on any Tesla built after Oct 2020 to ensure CCS compatibility: Control>Software>Additional Vehicle Information> CCS Adapter Support-Check If Enabled. Any Tesla built prior to 2014 will be excluded from CCS.

【Quick Charging】It supports 300 Amps of maximum current and 500V DC voltage.

【Extremely Durable】PA66 and glass fiber materials provide an exceptional durability.

【Waterproof】IP55 rated for waterproof, it is absolutely good for your charging in any bad weather.

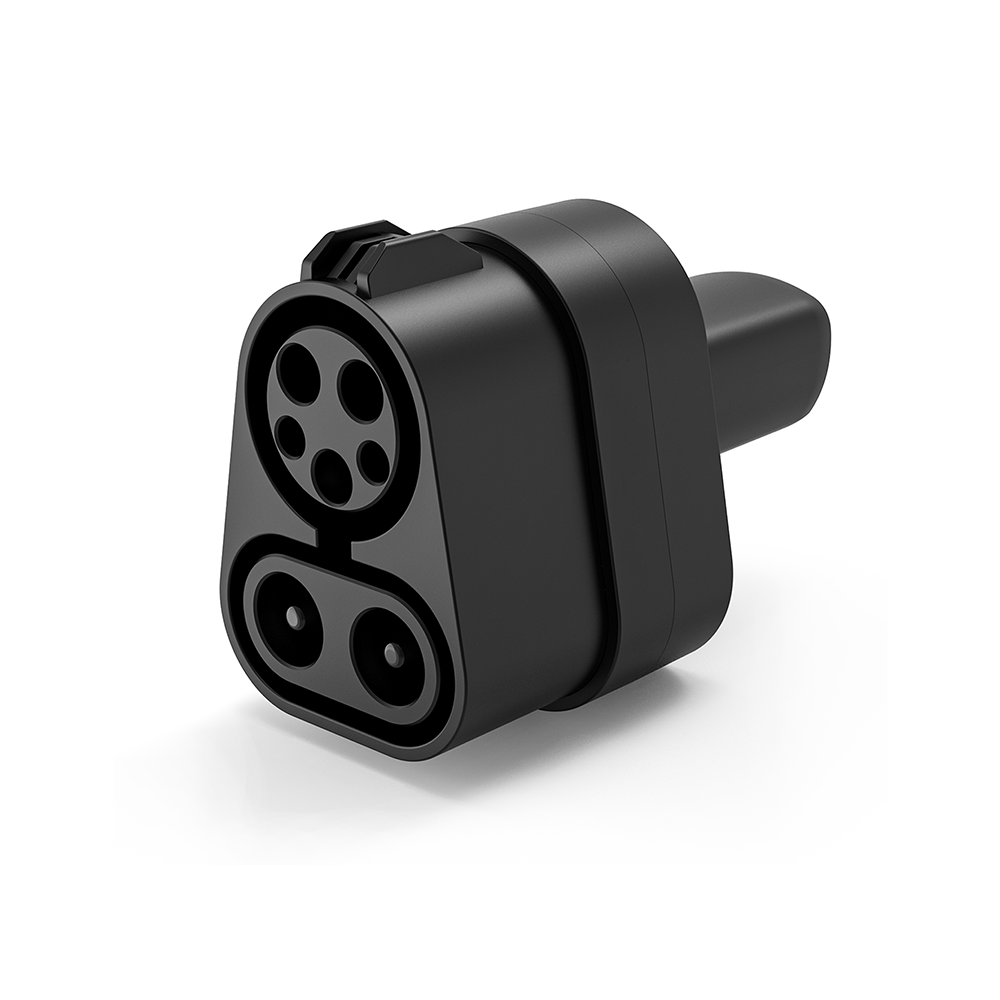

CCS1 to Tesla Charging Adapter
Model No.	HAD001
Standard	SAE CCS1
Rating	IP55
Insulation Resistance	>1000MΩ(DC500V)
Rated Current	Max 300A
Rated Voltage	250V DC
Terminal Temperature Rise	<50K
Withstand Voltage	2000V
Contact Impedance	0.5mΩ Max
Material of Housing	PA66+Glass Fiber
Material of Terminal	Copper-alloy Silver Plated
Working Temperature	-40°C to 85°C
Unloaded Plug & Unplug	>10000

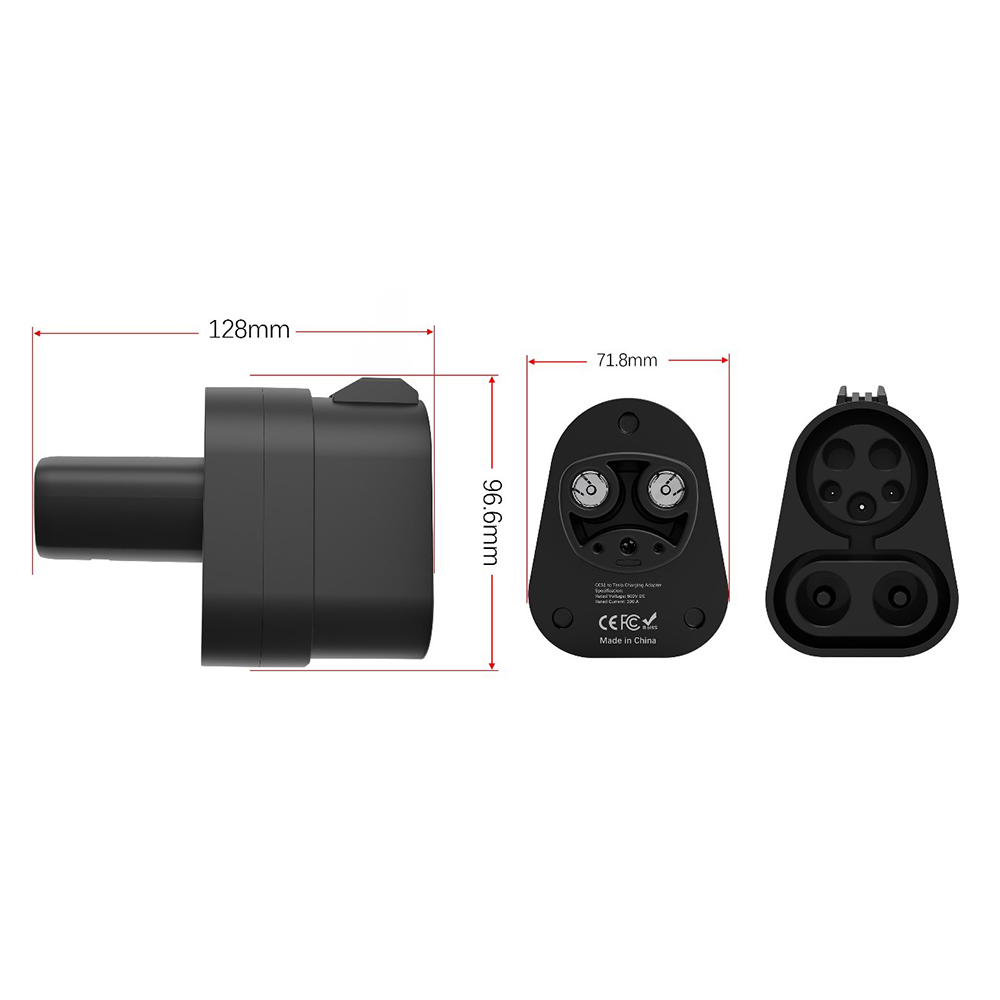

Dimension	128x97x72mm
