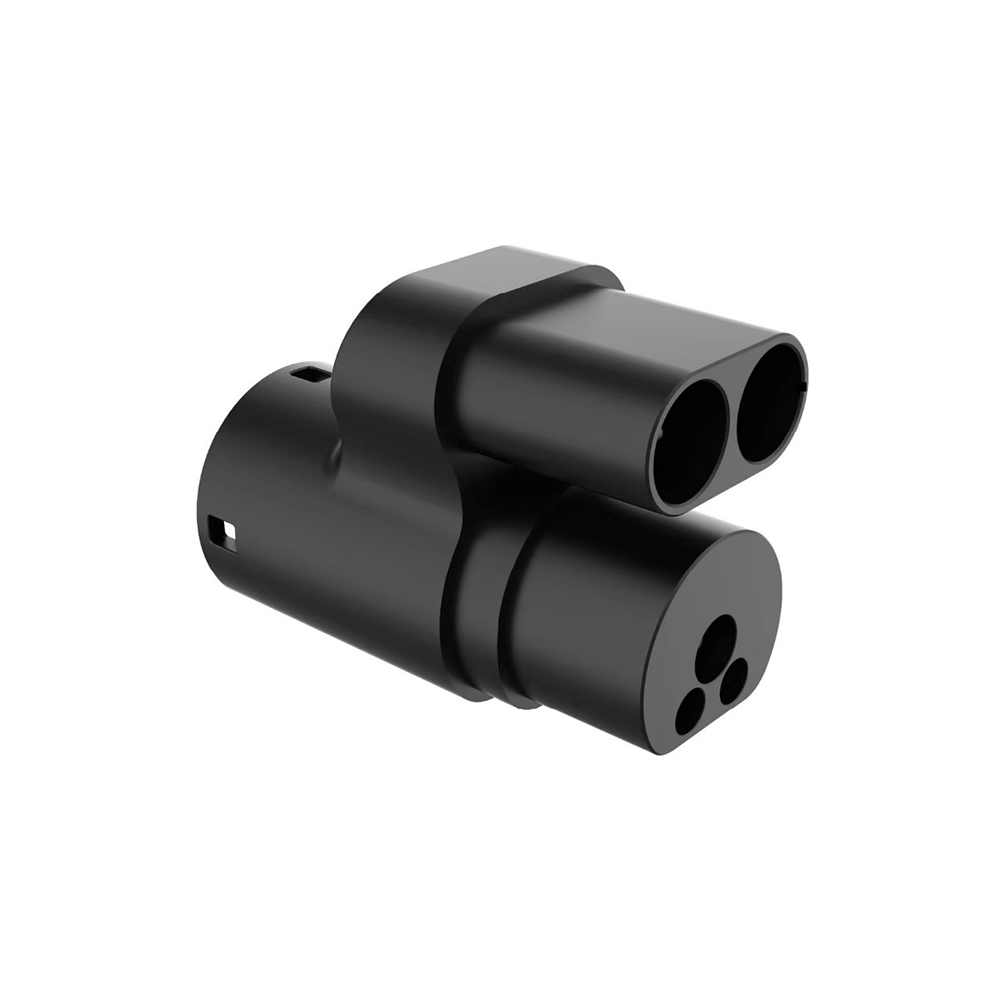

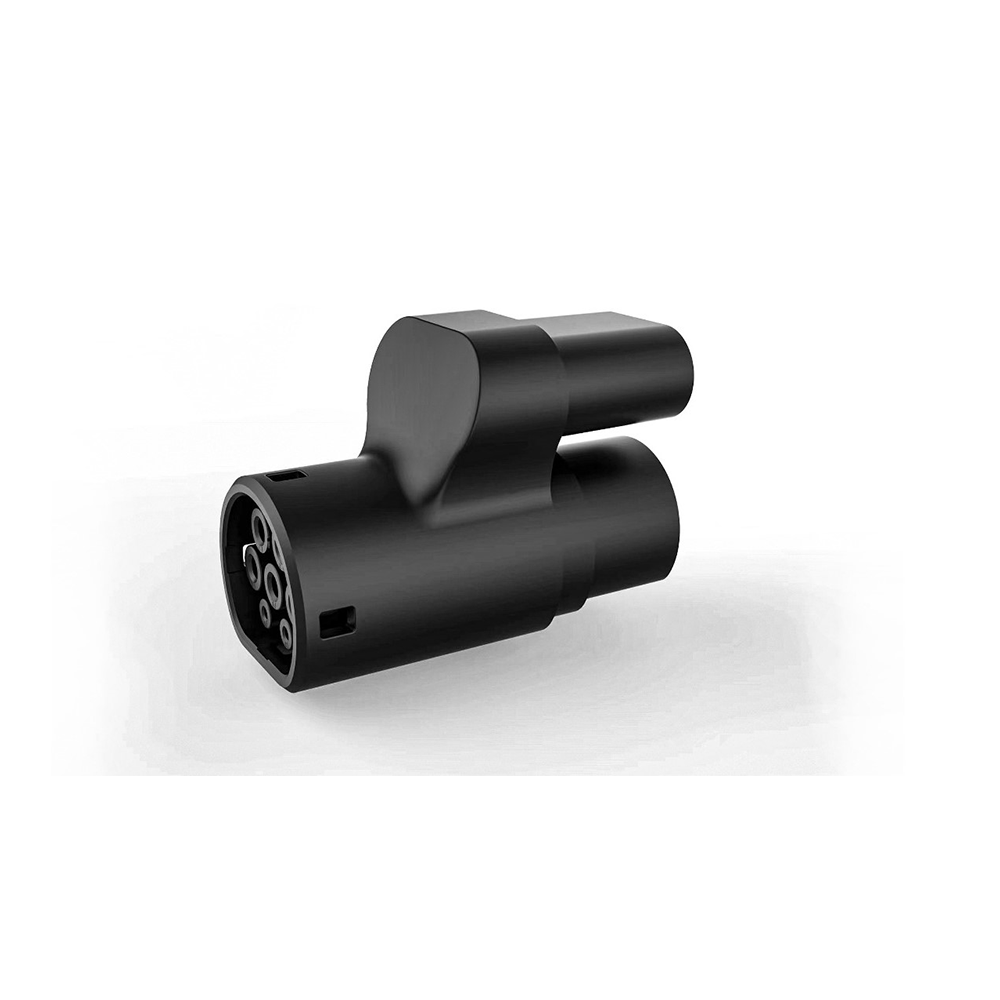

CCS2 to Type 2 Charging Adapter |
|
|
Model No. |
HAD0008 |
|
Standard |
Type 2/IEC 62196 |
|
Rating |
IP55 |
|
Insulation Resistance |
>1000MΩ |
|
Rated Current |
Max 300A |
|
Rated Voltage |
500V |
|
Terminal Temperature Rise |
<50K |
|
Withstand Voltage |
2000V |
|
Contact Impedance |
0.5mΩ Max |
|
Material of Housing |
PA66+Glass Fiber |
|
Material of Terminal |
Copper-alloy Silver Plated |
|
Working Temperature |
-40°C to 85°C |
|
Unloaded Plug & Unplug |
>10000 |
|
Product Size |
133.2*90*64mm |
