【For Tesla Owners Only】 The J1772 to Tesla Charging Adapter is designed to work with all Tesla models including Model 3/S/X/Y. Tesla owners can easily connect their cars to a wide range of public charging stations that feature J1772 standard without the need for any additional adapters or accessories.
【Quick Charging】It supports 80 Amps of maximum current and 250V AC voltage.
【Extremely Durable】PA66 and glass fiber high quality materials provide an exceptional durability.
【Waterproof】IP55 waterproof ensures your charging is safe in bad weather.
【Additional Charge Lock】Charging is more secured.
|

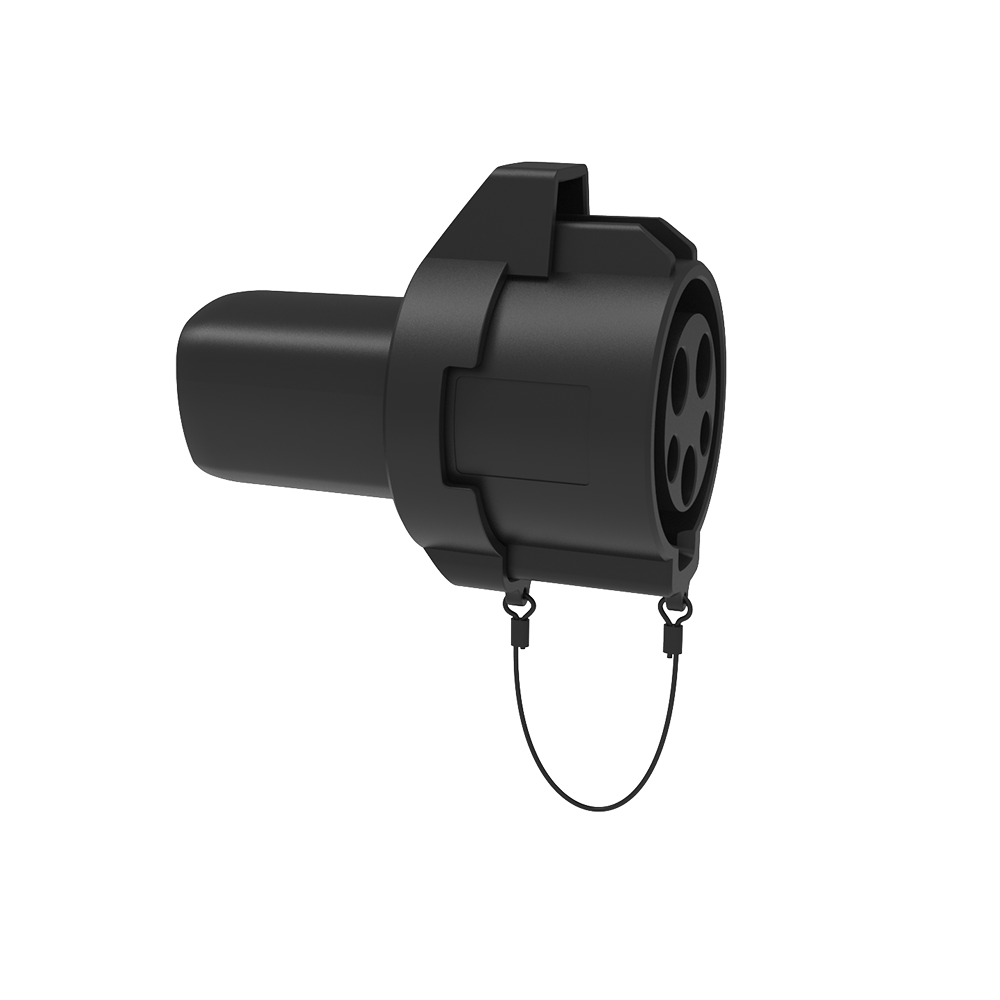

J1772 to Tesla Charging Adapter |
|
|
Model No. |
HAD0002 |
|
Standard |
SAE J1772 |
|
Rating |
IP55 |
|
Insulation Resistance |
>1000MΩ(DC500V) |
|
Rated Current |
Max 80A |
|
Rated Voltage |
250V AC |
|
Terminal Temperature Rise |
<50K |
|
Withstand Voltage |
2000V |
|
Contact Impedance |
0.5mΩ Max |
|
Material of Housing |
PA66 + Glass Fiber |
|
Material of Terminal |
Copper-alloy Silver Plated |
|
Working Temperature |
-40°C to 85°C |
|
Unloaded Plug & Unplug |
>10000 times |
|

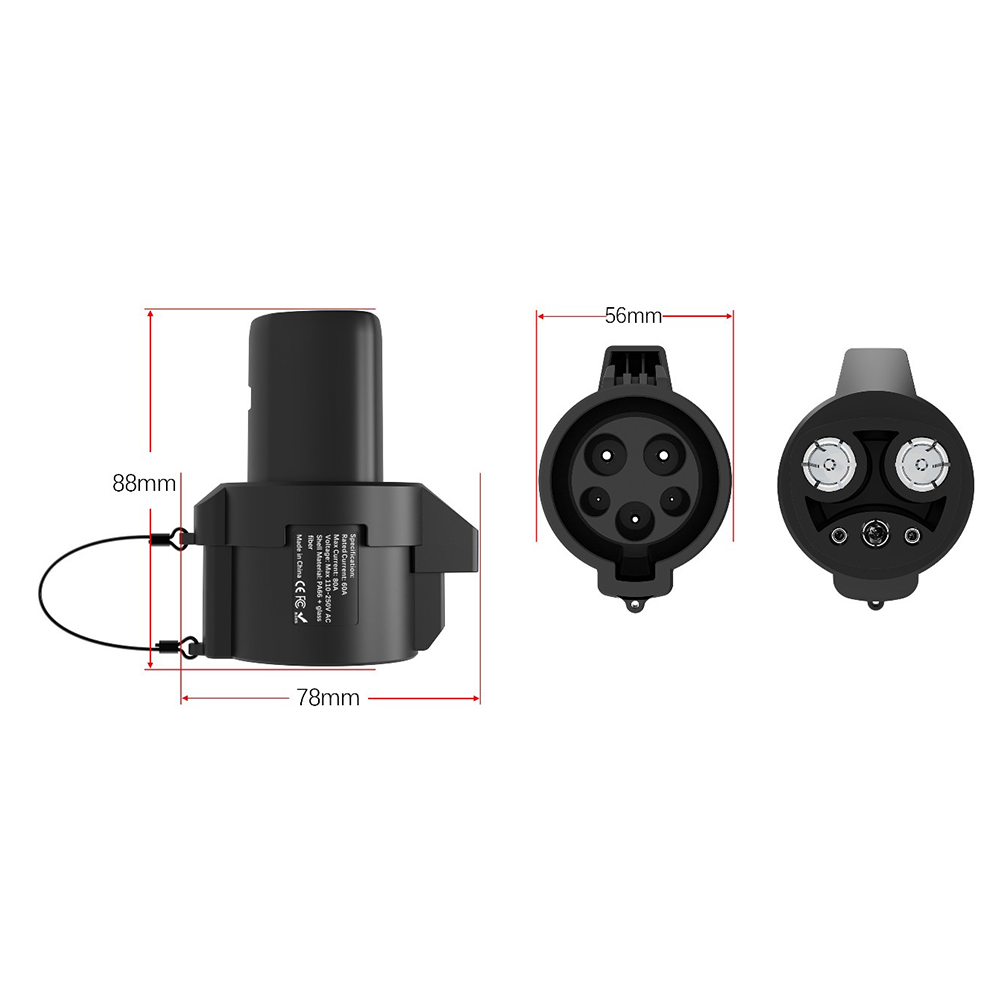

Dimension |
88ⅹ78ⅹ56mm |
