【For ALL J1772 EVS】Tesla to J1772 Charging Adapter is designed to connect J1772 vehicles to Tesla chargers. It is compatible with Tesla high powered connector, destination charger and mobile connector.
【Quick Charging】It supports 40 Amps of maximum current and 250V of maximum voltage.
【Extremely Durable】PA66 and glass fiber materials provide an exceptional durability.
【Waterproof】IP55 rated for waterproof, it is absolutely good for your charging in any bad weather.
|

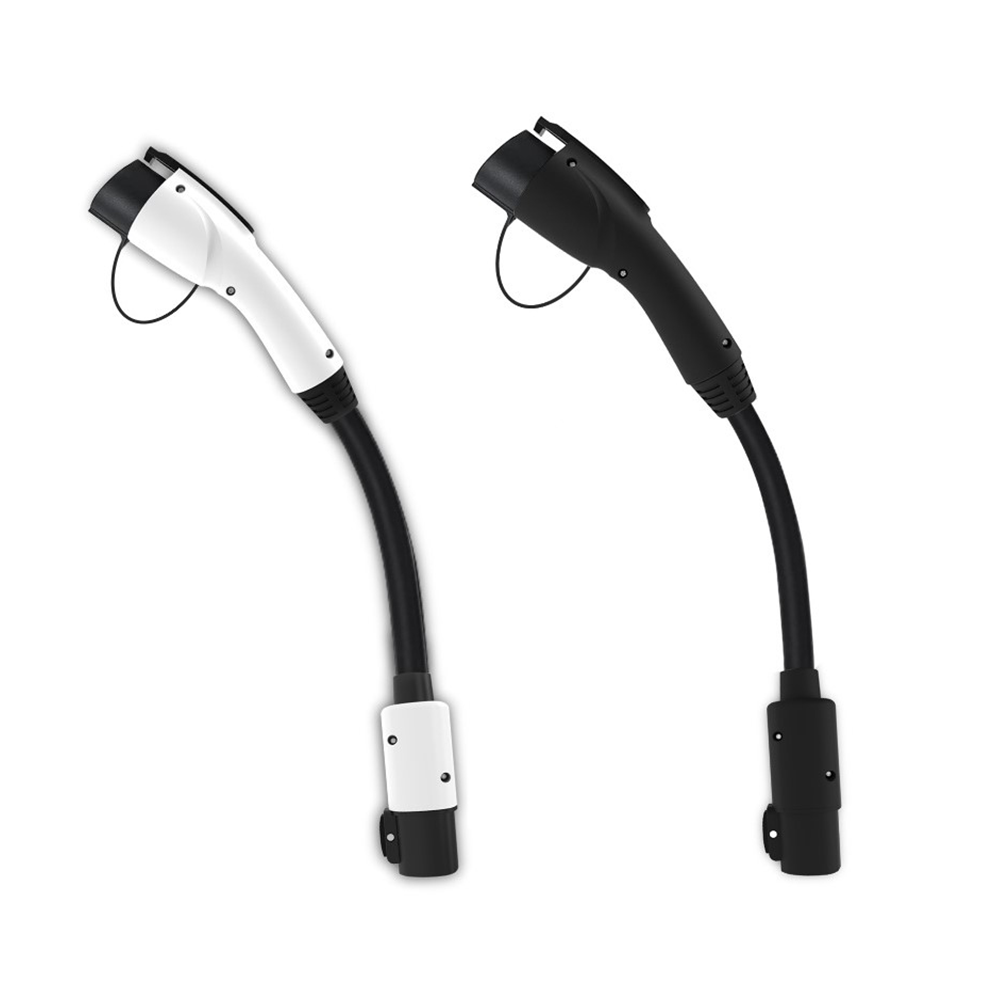

Tesla to J1772 Charging Adapter |
|
|
Model No. |
HAD0004 |
|
Standard |
SAE 1772 |
|
Rating |
IP55 |
|
Insulation Resistance |
>1000MΩ |
|
Rated Current |
Max 40A |
|
Rated Voltage |
250V AC |
|
Terminal Temperature Rise |
<50K |
|
Withstand Voltage |
2000V |
|
Contact Impedance |
0.5mΩ Max |
|
Material of Housing |
PA66 + Glass Fiber |
|
Material of Terminal |
Copper-alloy Silver Plated |
|
Working Temperature |
-40°C to 85°C |
|
Unloaded Plug & Unplug |
>10000 |
|
Cable Length |
20cm |
