【High Compatibility】 Compatible with all electric vehicles and plug-in hybrids with Type 2 and CCS2 charging inputs.
【Fast Charging】With the 32A 22KW 3 phase type 2 to type 2 charging cable, you can charge your electric car as quickly as possible.
【Extremely Durable】PA66 and glass fiber materials provide an exceptional durability.
【Waterproof】Protection level is IP55, it is perfect to withstand rain, sand and dust scenes and can be used in outdoor environments with complete confidence.
【Easy to Carry】The product comes with a carry bag that can store cables in the boot, easy to carry. You can charge where you like!
|

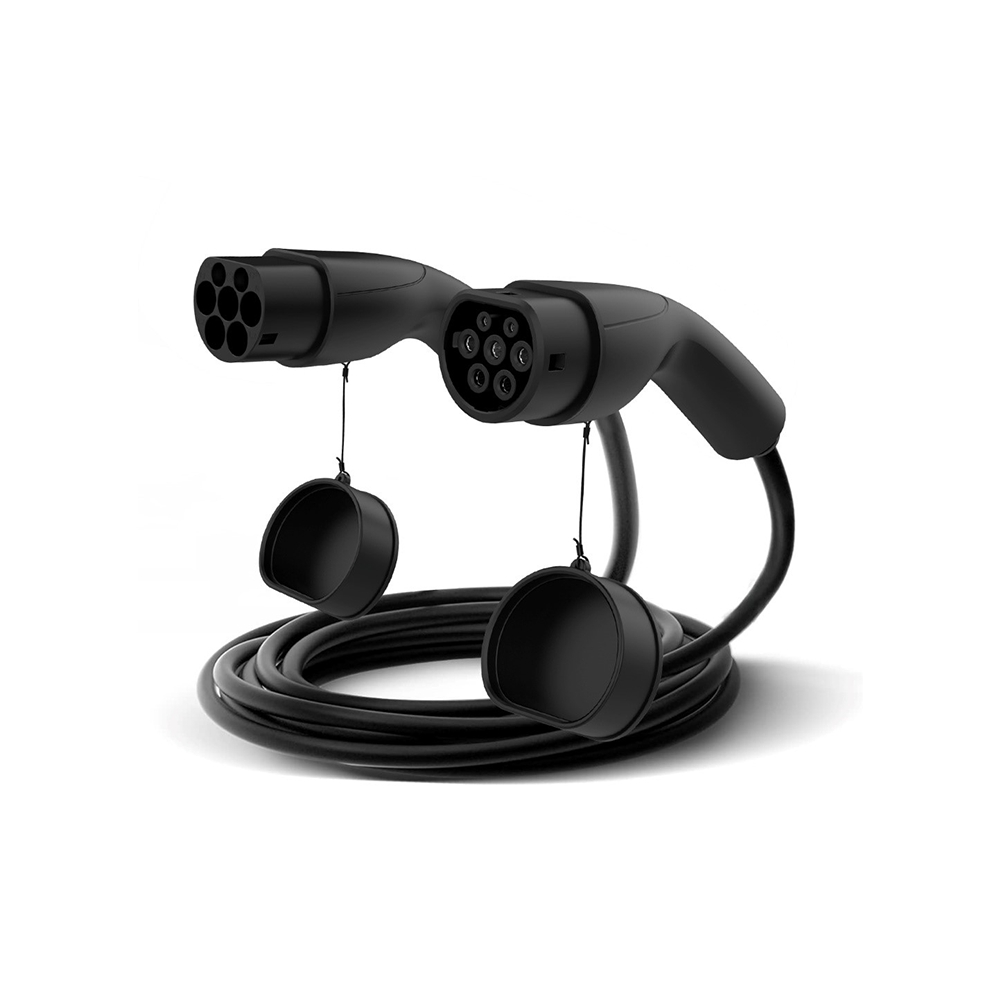

Type 2 to Type 2 EV Charger Adapter |
|
|
Model No. |
CC0001 |
|
Standard |
Type 2/IEC 62196 |
|
Rating |
IP55 |
|
Insulation Resistance |
>1000MΩ |
|
Rated Current |
Max 32A |
|
Rated Voltage |
240V |
|
Terminal Temperature Rise |
<50K |
|
Withstand Voltage |
2000V |
|
Contact Impedance |
0.5mΩ Max |
|
Material of Housing |
PA66+Glass Fiber |
|
Material of Terminal |
Copper-alloy Silver Plated |
|
Working Temperature |
-40°C to 85°C |
|
Unloaded Plug & Unplug |
>10000 cycles |
|
Length |
5M-10M |
