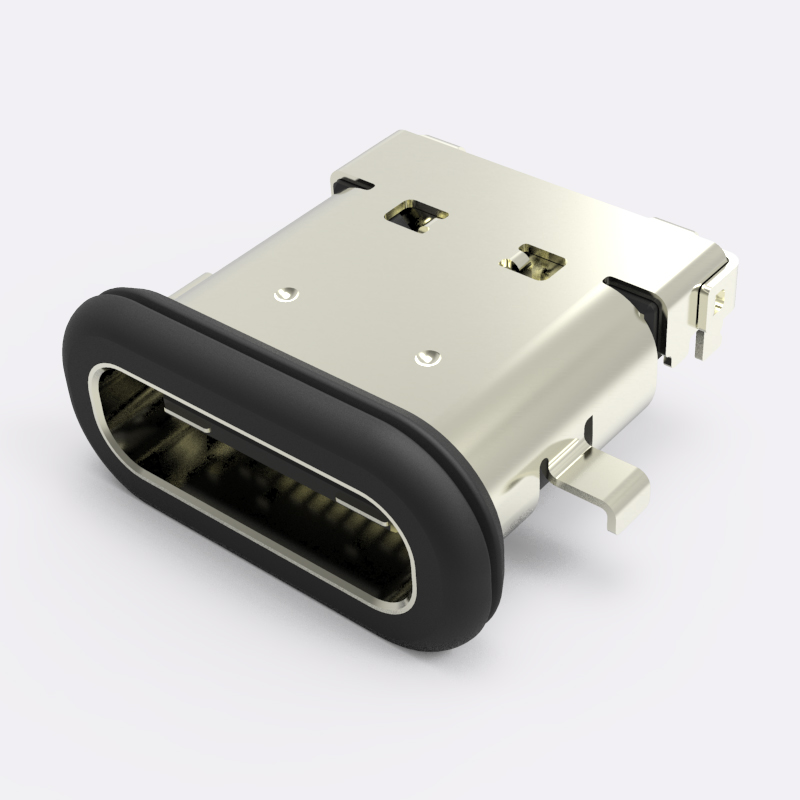

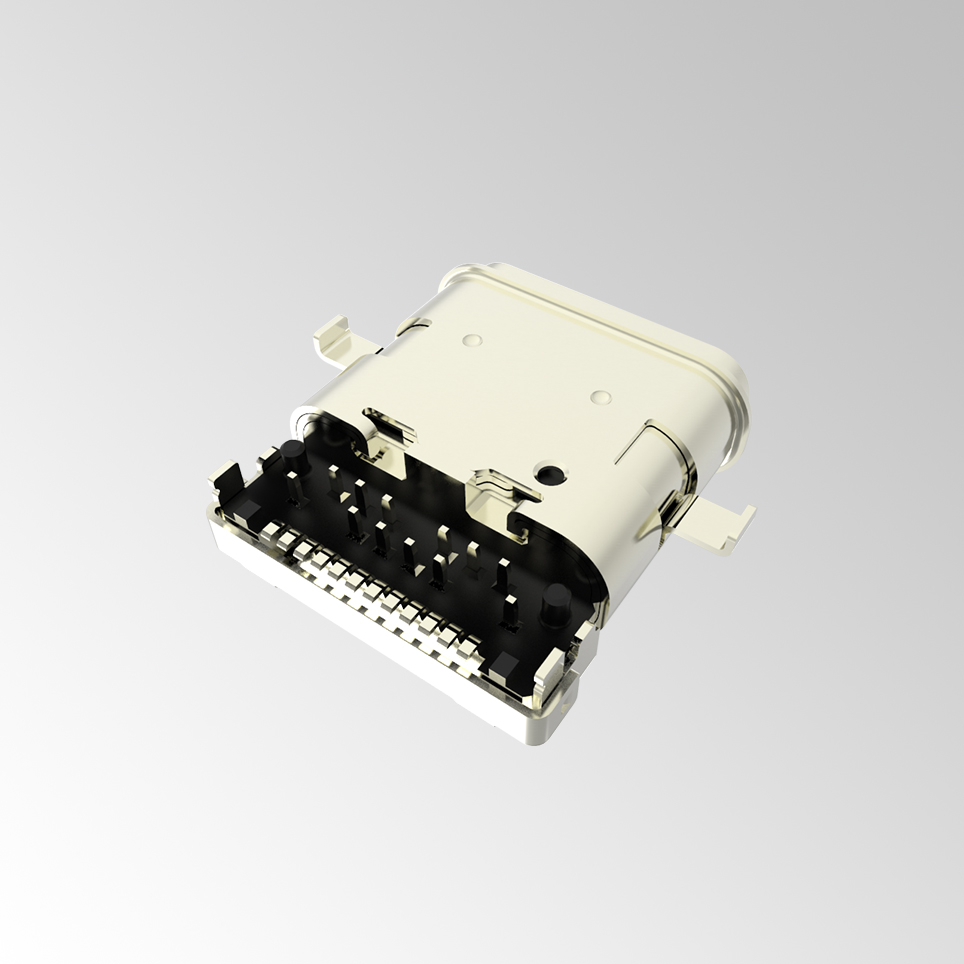

Type C Waterproof

Item Number: US10013
Volume Order? Request a quote
  • Product Overview
  • Specifications
  • Downloads

Category:  USB Connector

Version:  USB3.1

Interface:  Type C
Gender:  Female
Center Height CL:  0.29

Total Height H:  2.0

Total Length L (+/-0.20mm):  10.65

Total Height W:   9.20
Mount type:  SMT and HYBRID

Orientation:  STD


Insulator: High temperature plastic UL 94 V-0; Black Color

Contact: Copper alloy (T=0.15mm)

Shell: Stainless steel(T=0.20mm)


Electrical characteristics:

Contact resistance: 40 MΩ Max for initial 10 MΩ change after test. Measure at 20mV, 100mA

Contact current rating: 5A for collectively power supply. Pin(pin A1,A4,A9,A12,B1,B4,B9,B12): 1.25A for Vconn Pin;0.25A for other signal pin

Dielectric withstanding voltage: 100V AC R.M.S

Insulation resistance: 100 MΩ Min

Operating temperature: -40℃~85℃


Mechanical characteristics:

Mating force: 5~20 N.

Unmated force: 8~20 N after test

Durability: 10,000 cycles



Terminal contact: Gold plating on contact area, all over 50u”Min Nickel and 80 u” Min matte Tin all over 50 u” Min Nickel on solder area.

Out shell: 50u” Min. Nickel all over
Inner shell: Degrease
