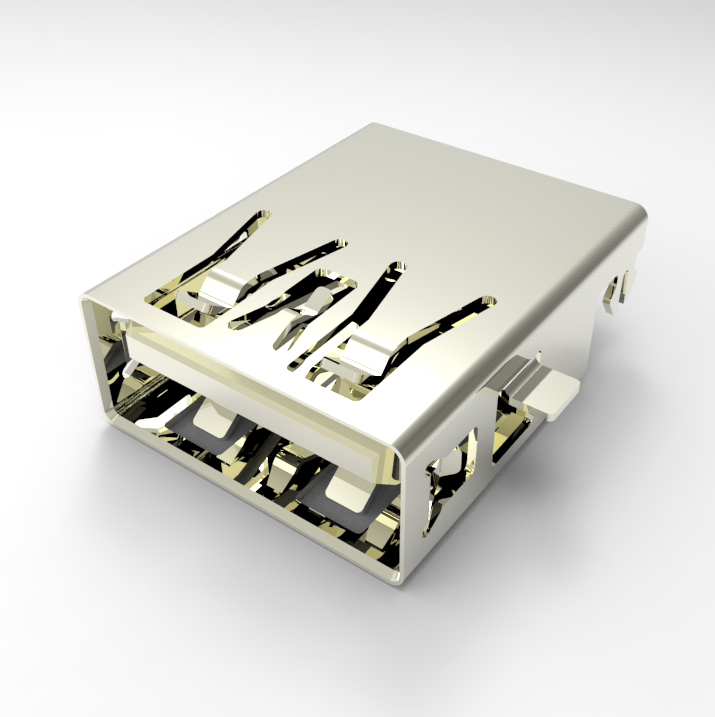

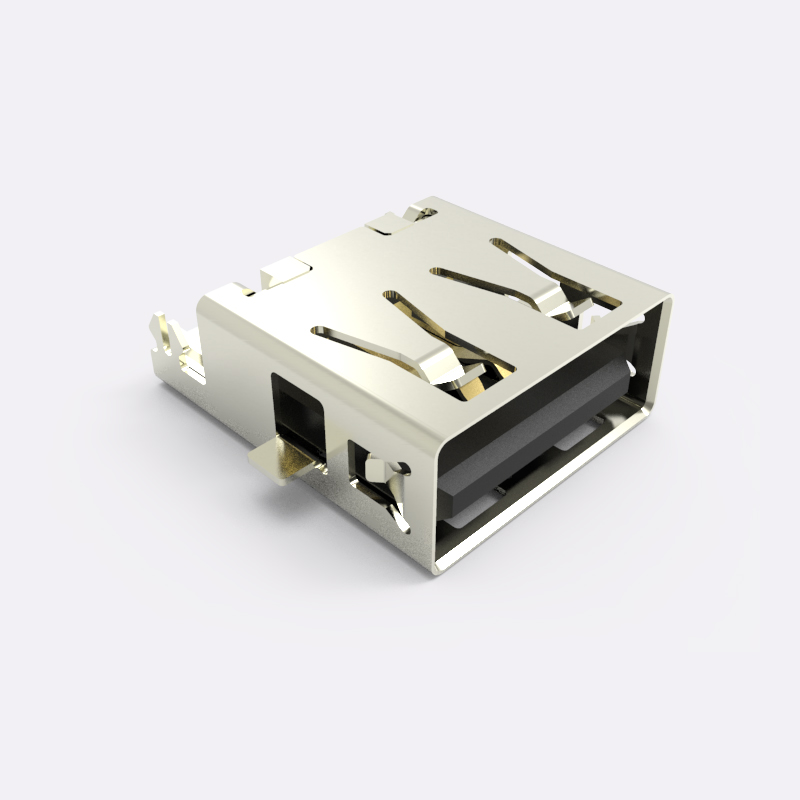

Category:  USB Connector

Version:  USB2.0
Type:  A Type
Gender:  Female
Center Height CL:  -0.78

Total Height H:  2.08
Mount type:  DIP

Material:

Insulator: High temperature plastic UL 94 V-0

Contact: Copper alloy(T=0.2mm)

Shell: SUS201(T=0.30mm)

Electrical characteristics:

Contact resistance: 30 MΩ Max

Contact current rating: 1.5A

Dielectric withstanding voltage: 500 V R.M.S

Insulation resistance: 100 megohms Min

Operating temperature: -40℃~85℃

Mechanical characteristics:

Mating force: 35 N Max

Unmated force: 10 N Min initial; 8 N Min after test

Durability: 5,000 cycles

Plating:

Terminal contact: Gold plating all over, 50u” Min nickel and 80u” Min matte tin all over, 50u” Min nickel in solder area

Shell: 50u” Min. Nickel all over
