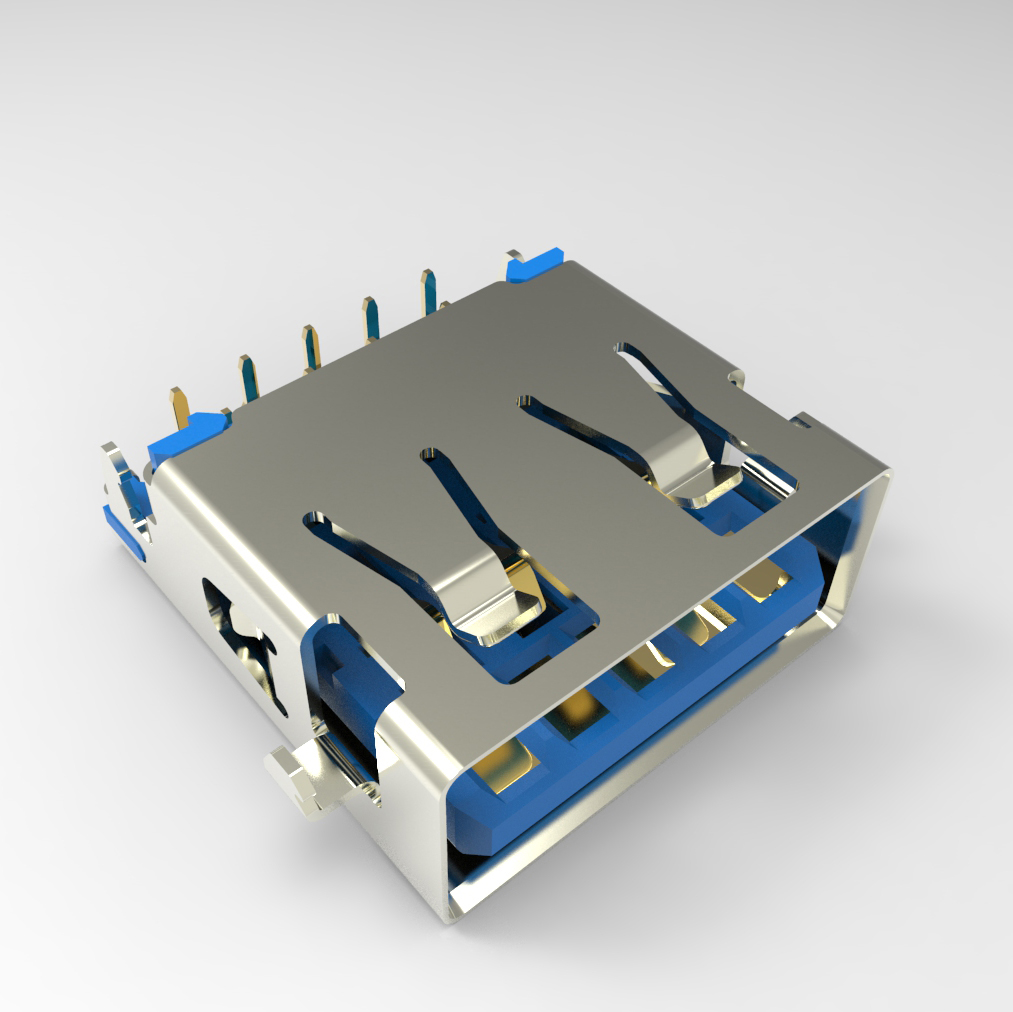

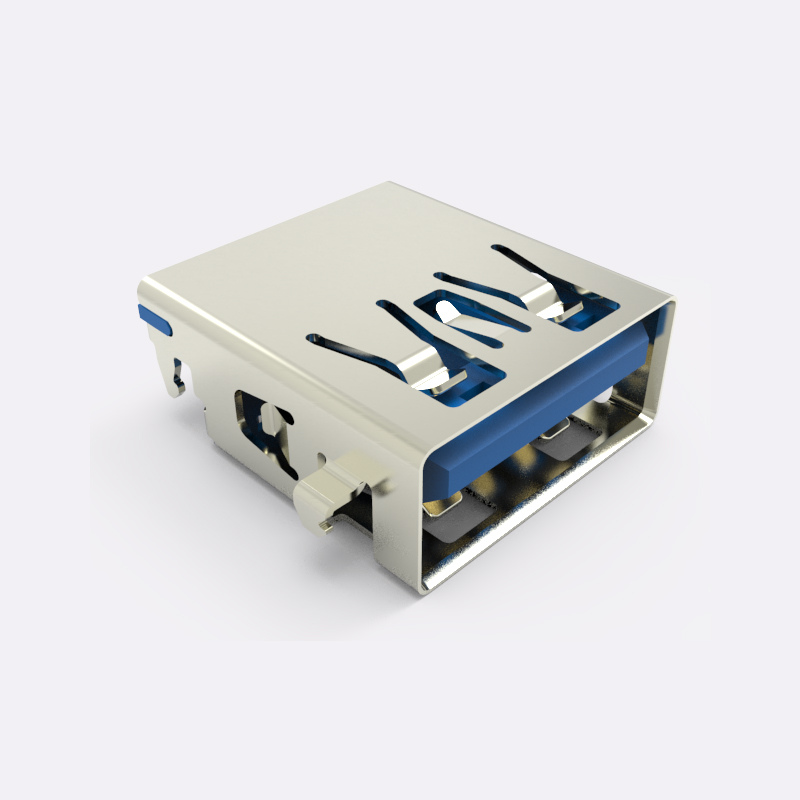

Version: USB3.1
Type: Type A
Gender: Female
Center Height CL: 0
Total Height H: 2.8
Mount type: DIP
Orientation: STD
Material:
Insulator: High temperature plastic UL 94 V-0
Contact: Copper alloy(T=0.2mm)
Shell: SUS201(T=0.30mm)
Electrical characteristics:
Contact resistance: 30 MΩ Max
Contact current rating: 1.5A
Dielectric withstanding voltage: 500 V R.M.S
Insulation resistance: 100 megohms Min
Operating temperature: -40℃~85℃
Mechanical characteristics:
Mating force: 35 N Max
Unmated force: 10 N Min initial; 8 N Min after test
Durability: 5,000 cycles
Plating:
Terminal contact: Gold plating all over, 50u” Min nickel and 80u” Min matte tin all over, 50u” Min nickel in solder area
Shell: 50u” Min. Nickel all over
