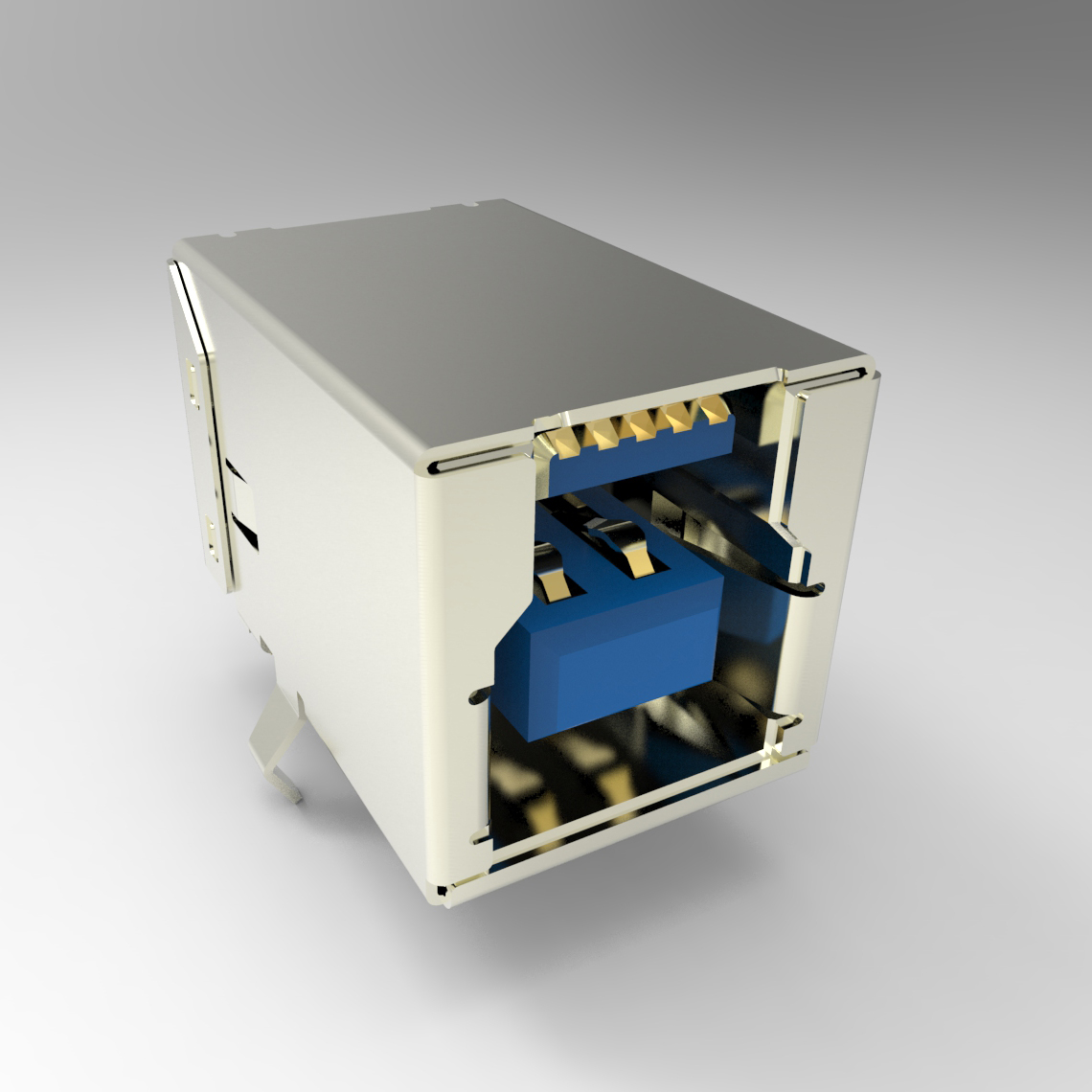

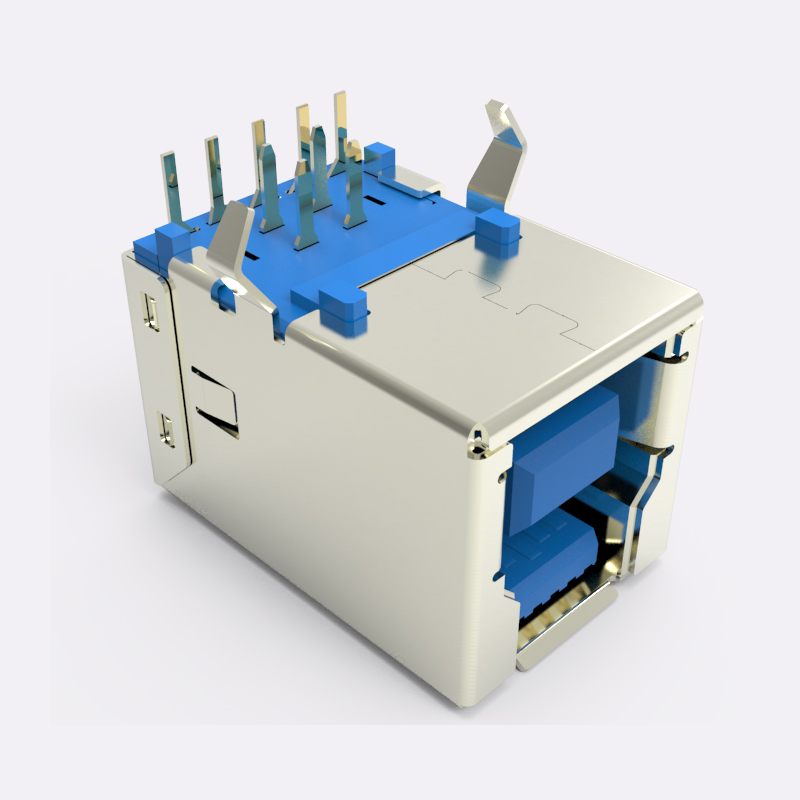

USB3.1 BF Connector

Item Number: HOC.US08001
Volume Order? Request a quote
  • Product Overview
  • Specifications
  • Downloads

Category:  USB Connector

Type:  B Type

Version:  USB3.1
Gender:  Female
Center Height CL:  5.64

Total Height H:  12.9
Mount type:  DIP


Material:

Insulator: LCP UL 94 V-0

Contact: Copper (5pin T=0.2mm/4pin: T=0.25mm)

Shell: Brass(T=0.30mm/T=0.20mm)



Electrical characteristics:

Contact resistance: 30 MΩ Max

Contact current rating: 2.4A

Dielectric withstanding voltage: 500 V R.M.S

Insulation resistance: 1000 meg ohms Min

Operating temperature: -40~85



Mechanical characteristics:

Mating force: 3.57kg Max

Unmated force: 1.02kg Min initial; 0.82kg Min after test

Durability: Mandatory: 5,000 cycles



Plating:

Terminal : 50u” Min Nickel all over  80u” Min Tin on solder area(1~30)u” Au on contact area

Shell: Nickel plated
