【For Hyundai Vehicle】 Compatible with Hyundai Ioniq 5 & Ioniq 6 and other vehichles with discharging function.
【Quick Charging】It supports 15 amp maximum output.
【Extremely Durable】PA66 and glass fiber materials provide an exceptional durability.
【Waterproof】IP55 rated for waterproof, it is absolutely good for your charging in any bad weather.
|
Vehicle to Load Adapter |
|
|
Model No. |
HADXXXX |
|
Standard |
SAE 1772 |
|
Rating |
IP55 |
|
Insulation Resistance |
>1000MΩ(DC500V) |
|
Rated Current |
Max 15A |
|
Rated Voltage |
110V AC |
|
Terminal Temperature Rise |
<50K |
|
Withstand Voltage |
2000V |
|
Contact Impedance |
0.5mΩ Max |
|
Material of Housing |
PA66 + Glass Fiber |
|
Material of Terminal |
Copper-alloy Silver Plated |
|
Working Temperature |
-40°C to 85°C |
|
Unloaded Plug & Unplug |
>10000 |
|

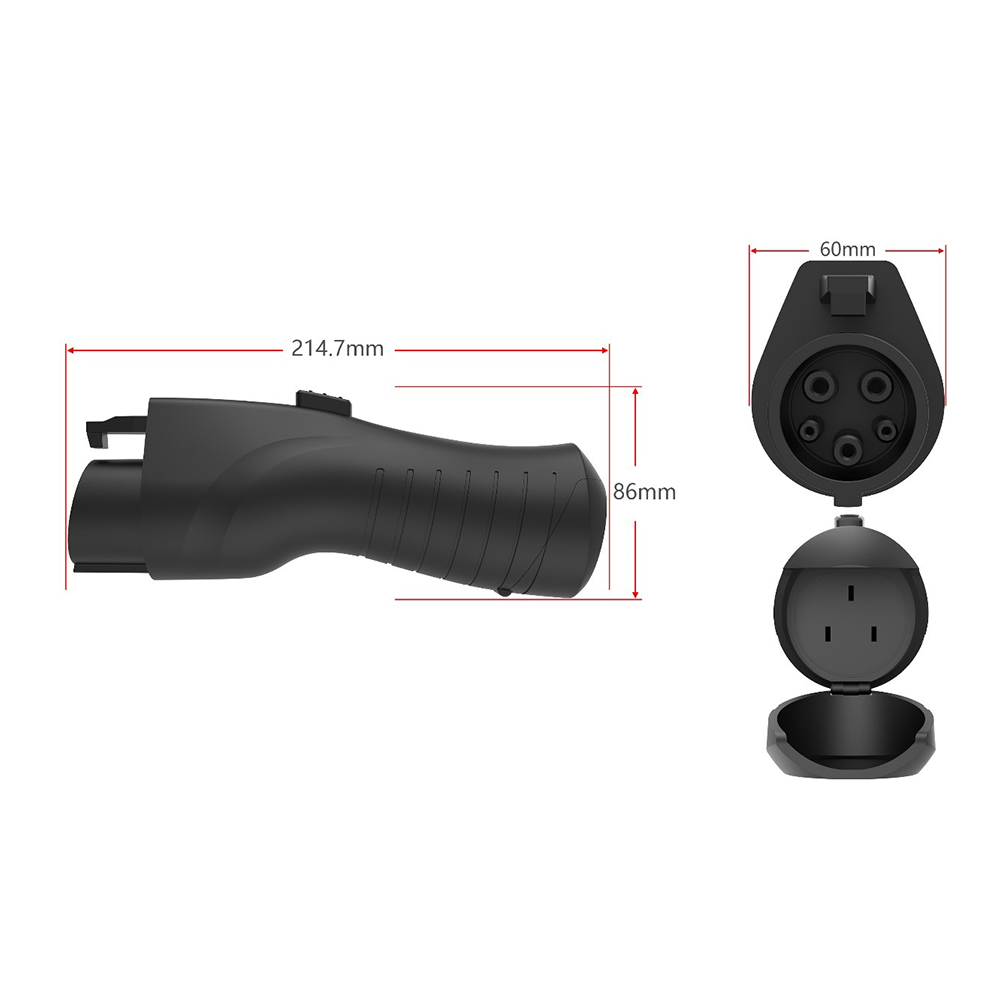

Dimension |
214.7x60x86mm |
